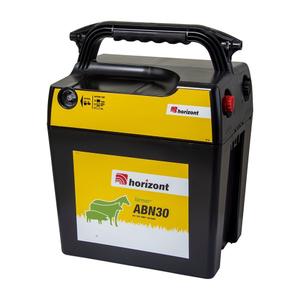

Mixed station Farmer ABN30

farmer® universal energizers are built into a compact housing, with output power up to 2.5 J and voltage up to 12,500 V. Whatever the loss, the device restores equivalent energy or power. The high or very high voltage deployed by the energizer provides sufficient energy to contain the animals.
With load-sensing circuit - energizer output and power consumption automatically adapt to fence condition.
Battery indicator light.
Can be used with a 9 V dry cell, a 12 V battery and a 230 V mains supply.
The energizer can be used with a 12 V battery and a 230 V mains supply at the same time. It operates mainly on mains power and charges the 12 V battery. In the event of a mains failure, the battery can take over without interrupting fence operation.
- Recommended battery: 170 Ah Ref. 125H12012 (see p. 41) 7,727 - 4,857 h (= approx. 321 - 202 days).
Housing compatible with rechargeable batteries up to 34 Ah and dry cells up to 200 Ah.

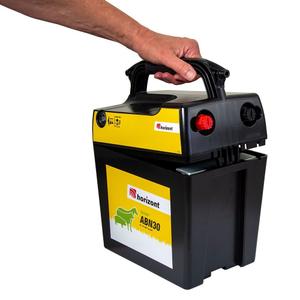

Device easily moved with one hand.
Comfortable with GRIP handle.
No pinched cables.
LED operation monitoring.
Can be used with solar panel and 9 V dry cell, the energizer runs on solar power during the day and on battery power at night.
Can be used with solar panel and 12 V rechargeable battery, the solar module recharges the battery during the day and the energizer runs on battery power at night.
Optional 5 W solar module.
Included with the energizer:
Fence and earth connection cable with reinforced plastic sheath.
Earth spike
Supplied without transformer for mains supply. To be ordered separately ( ref 9hor47psu0010FEU)
Technical specifications :
Power supply: 9V - 12V - 230V
Stored energy: 0.4 J
Delivered energy: 0.3 J
Maximum fence voltage: 10,000
Voltage under 500 Ohms: 3,300
Consumption: 22-35 mA / 9 V - 15-28 mA / 12 V
Maximum fence distance, EEC standard: 9.5 km
Distance without vegetation: 5.5 km
Distance with medium vegetation: 3.8 km
Distance with heavy vegetation: 0.9 km
Recommended ground stake: 1*1 m
Recommended number of nets: 2*50 m
Recommended solar panel: 5W
